Leveraging advanced dust collection technology and extensive field experience, WINTECH improves air quality
in industrial facilities while creating safe and sustainable production environments.
Bag Filter System
Environment division
Equipment Overview
High-efficiency filtration removes more than 99.9% of particulate pollutants generated in industrial facilities.
Dust, fine particulate matter, and metal fumes generated during industrial processes
are subject to stringent emission standards under applicable air quality regulations.

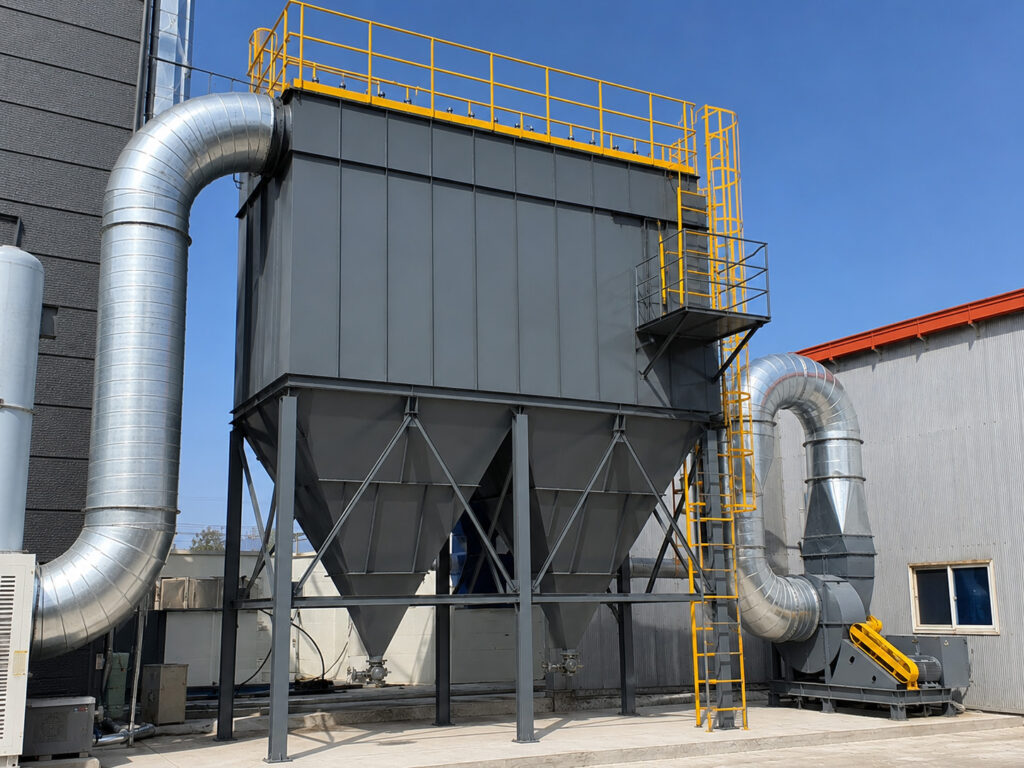

A Bag Filter is a dry-type air pollution control system that captures particulate matter
from contaminated air using high-performance filter bags. With high collection efficiency
and reliable operation, it is one of the most widely adopted air pollution
control solutions across industrial facilities.
작동 원리
STEP 01
Contaminated Air Inlet
Dust-laden air enters the chamber through the inlet located at the bottom of the housing.
STEP 02
Filtration & Particle Collection
Dust-laden air passes from the outside to the inside of the cylindrical filter bags, where particulate matter is captured on the outer surface of the filter media.
STEP 03
Pulse-Jet Cleaning
When the differential pressure reaches the preset level, compressed air is instantaneously injected in the reverse direction, causing the filter bags to flex and dislodging the accumulated dust. This pulse-jet cleaning process continuously restores filtration performance.
STEP 04
Dust Discharge
The dislodged dust falls into the hopper and is discharged through a rotary valve into an external collection container, while the cleaned air passes through the clean air chamber and is exhausted through the stack.
Target Pollutants
Applicable to all industrial processes that generate dust.
General Industrial Dust
Cement Dust, Lime Powder & Silica Sand Dust
Metal Dust & Fumes
Welding Fumes, Aluminum, Zinc & Iron Dust
Chemical & Pharmaceutical Dust
Activated Carbon Powder, Organic Dust & Pharmaceutical Raw Material Powders
High-Temperature Dust
Incinerator Fly Ash & Steelmaking Process Dust
Textile & Wood Dust
Cotton Fibers, Wood Dust & Paper Dust
Permitting & Regulatory Compliance
Air Emission Facility Permitting & Registration (Article 23 of the Clean Air Conservation Act)
Preparation and Submission of Air Pollution Control Facility Plans & Process Flow Diagrams
Design to Meet Dust Emission Standards
(5–50 mg/Sm³, depending on the industry and facility type, Appendix 8 of the Enforcement Rule of the Clean Air Conservation Act)
Operational Commencement Notification Support After Construction Completion
When installing a Bag Filter, a permit or registration must be obtained from the relevant Metropolitan
or Provincial Government in accordance with Article 23 of the Clean Air Conservation Act.
WINTECH provides a one-stop permitting solution by integrating facility design, construction,
and regulatory permitting services.
Related Equipment & Services
We provide optimized equipment solutions and professional services to ensure efficient system operation and safe environmental management.
Associated Equipment
Cyclone Dust Collector (Pre-Filter)
Regenerative Thermal Oxidizer (RTO)
Ductwork System
Industrial Fan
Related Services
Air Emission Facility Permitting Services
Risk Assessment Support
Chemical Accident Prevention Management Plan Preparation
Providing one-stop support,
including regulatory permitting services.
Provide the dust characteristics, airflow conditions, and installation environment, and we will quickly recommend the optimal specifications and a preliminary quotation.
